葡萄牙妹子VÂNIA建筑作品展示(含建筑作品集PDF下载)


[版块:大学生讨论区] [分类:海外留学] [复制链接] 报告无效帖子查看: 14868|回复: 70
管理员|深圳老梁 发表于 2014-3-20 22:47:00 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
此资料由本人在国外网络上收集。此资料在原网站提供了无限制下载(在醒目地方出现下载按钮,且下载时未出现任何限制条件或限制声明)。鉴于此,本人认为此资料可以在原网站下载并在网络上非盈利流通。在本站分享此资料时保留了资料的原版权信息,仅供学习交流,严禁剽窃盗用,或用于商业用途。如果您是此资料的利益拥有者,且认为此分享行为侵犯了您的利益,请联系本人并提供版权证明,本人将做删除处理。

以下作品由VÂNIA COELHO DOS SANTOS完成。

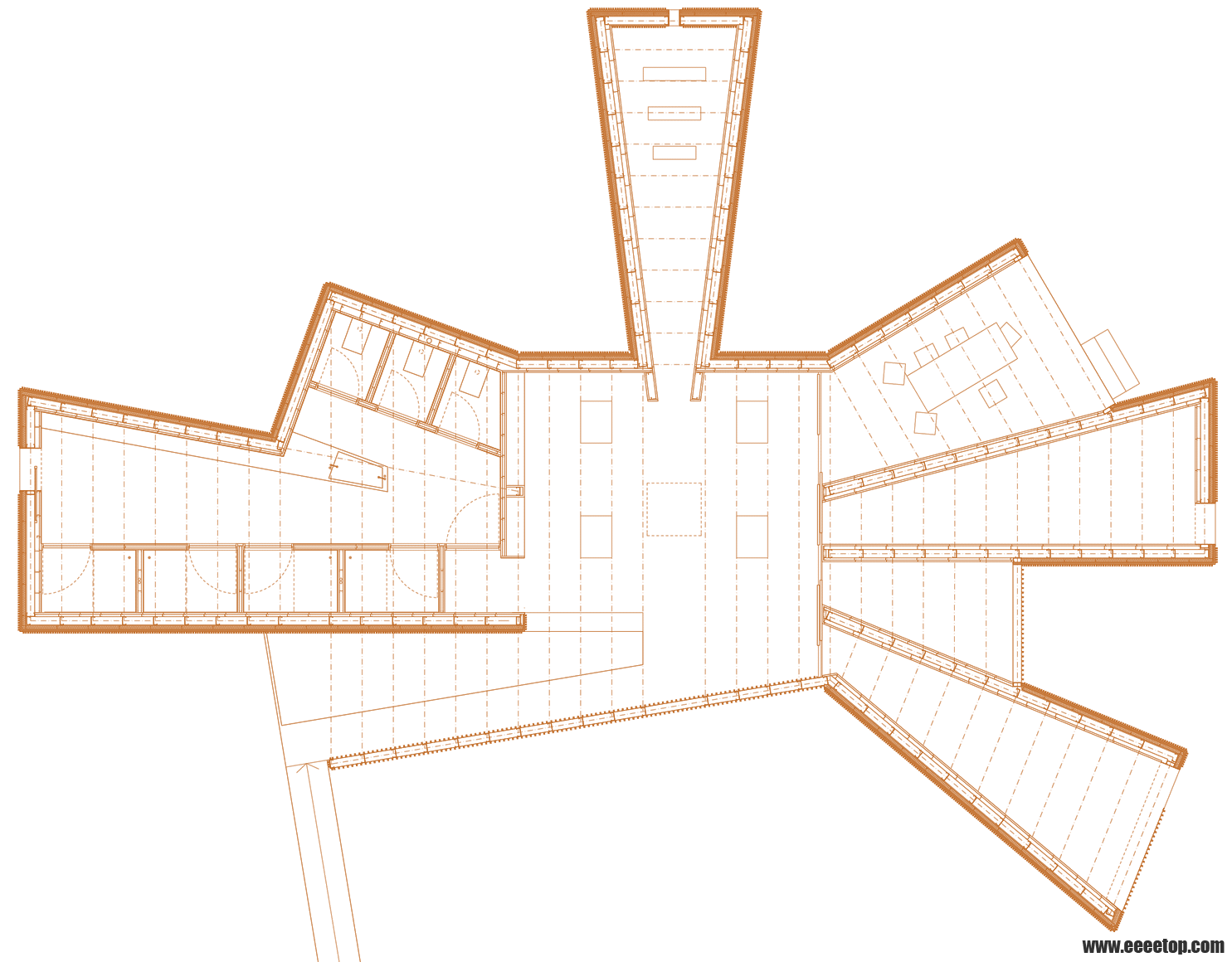

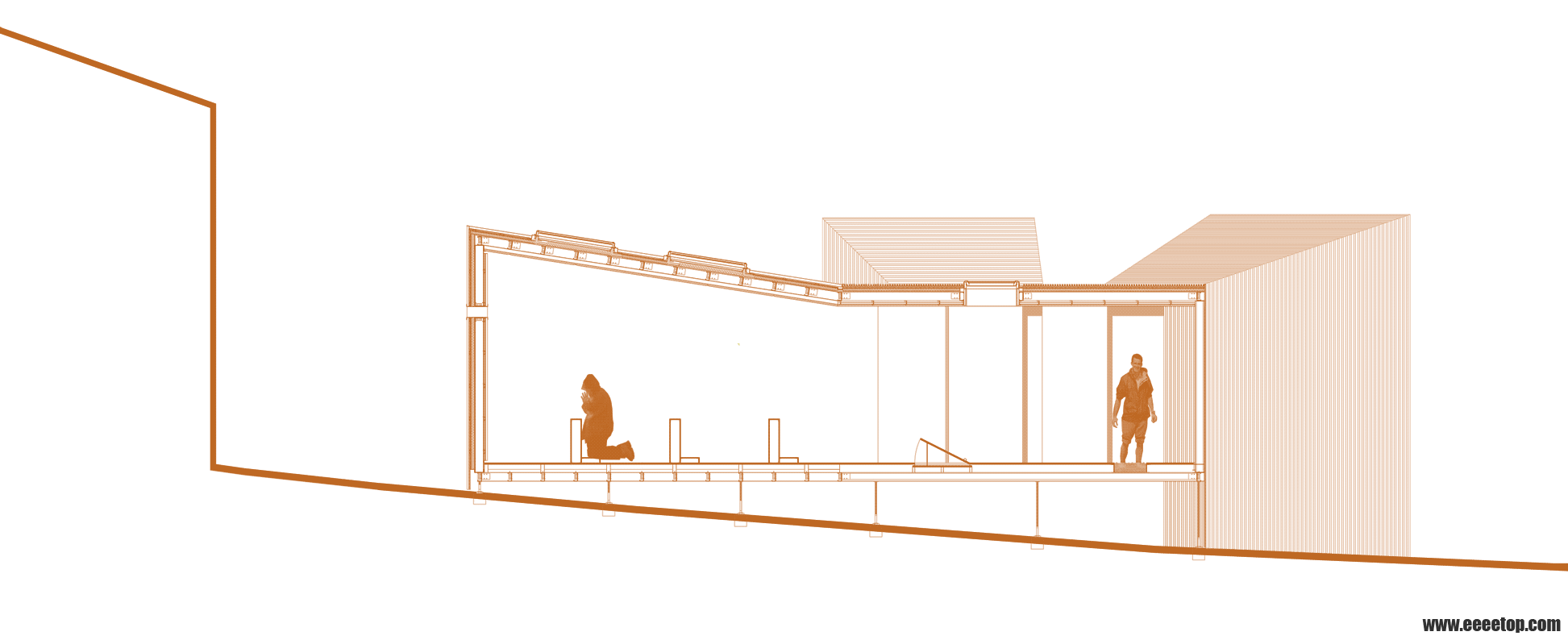

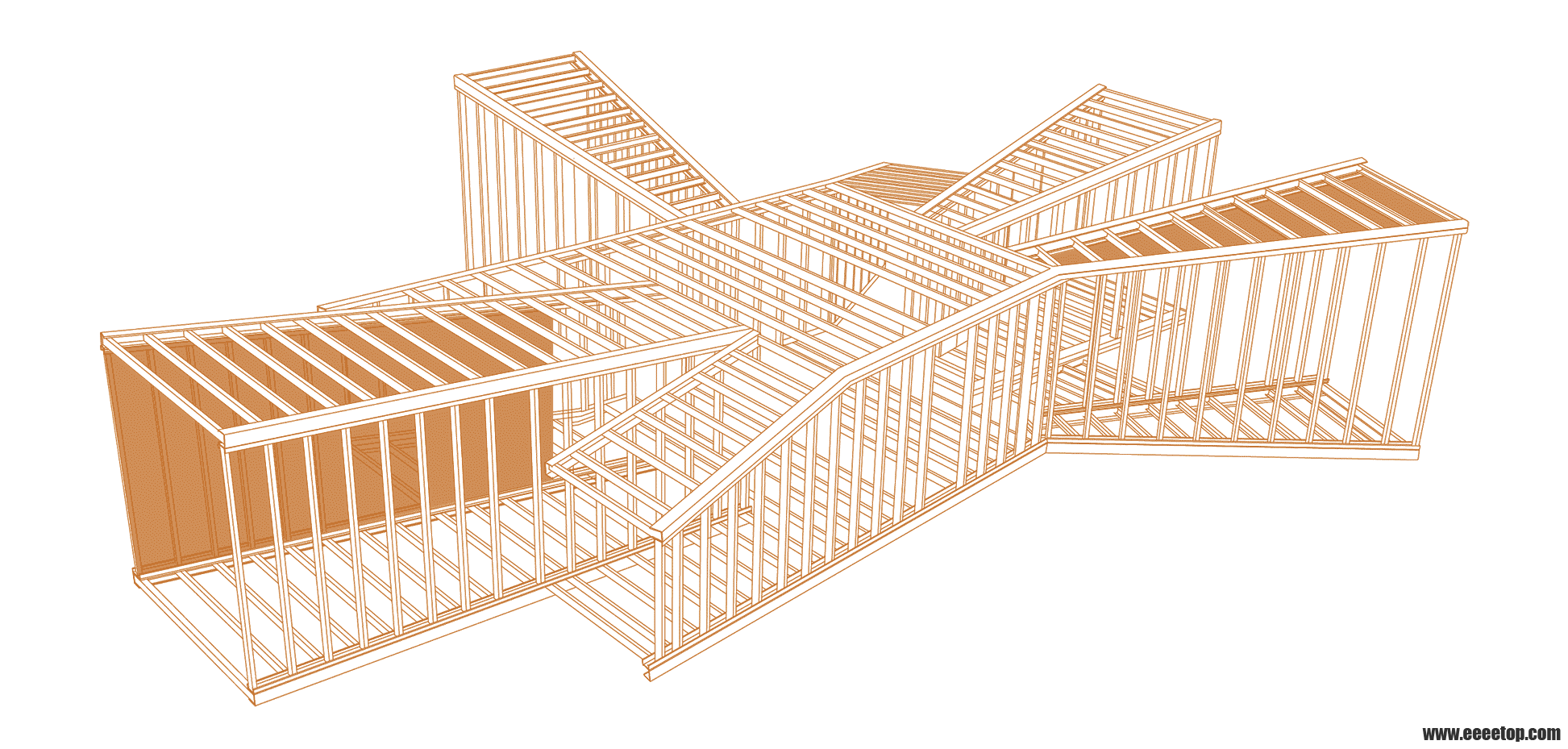

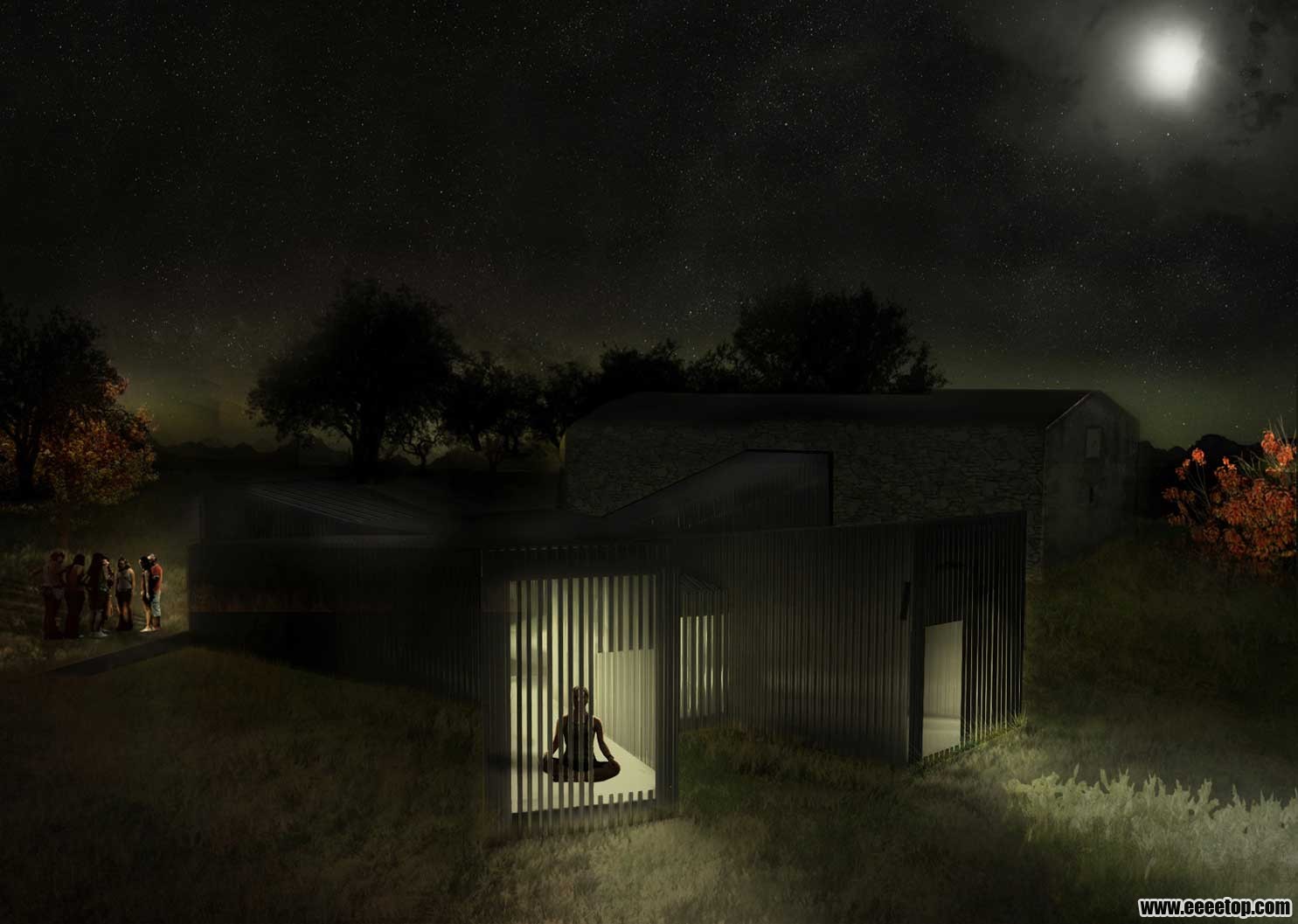

Shelter for Pilgrims
朝圣者庇护所

The main focus of this proposal was to design a space whose characteristics solved the pilgrims physical and spiritual necessities such as hygiene and rest and reflection and introspection.

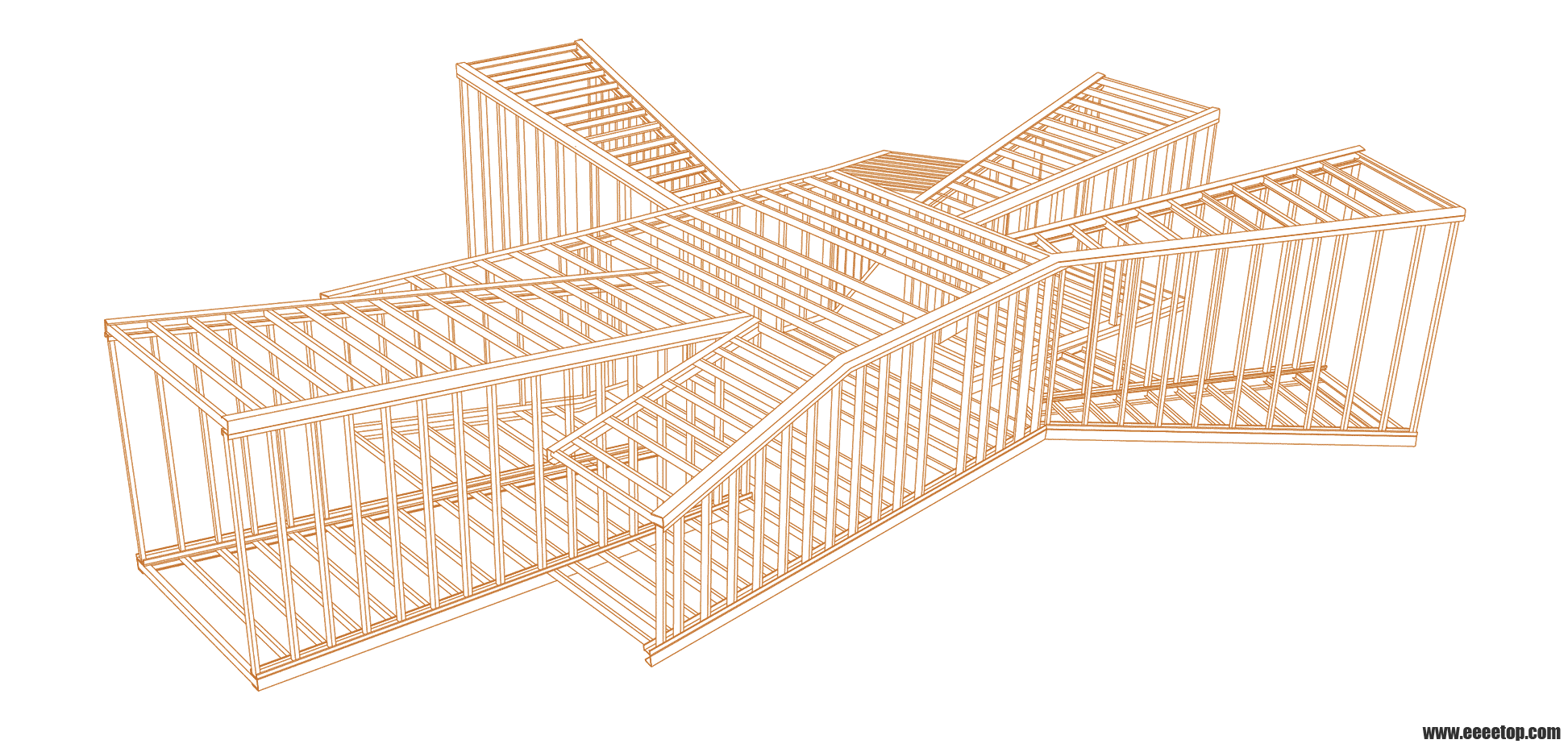

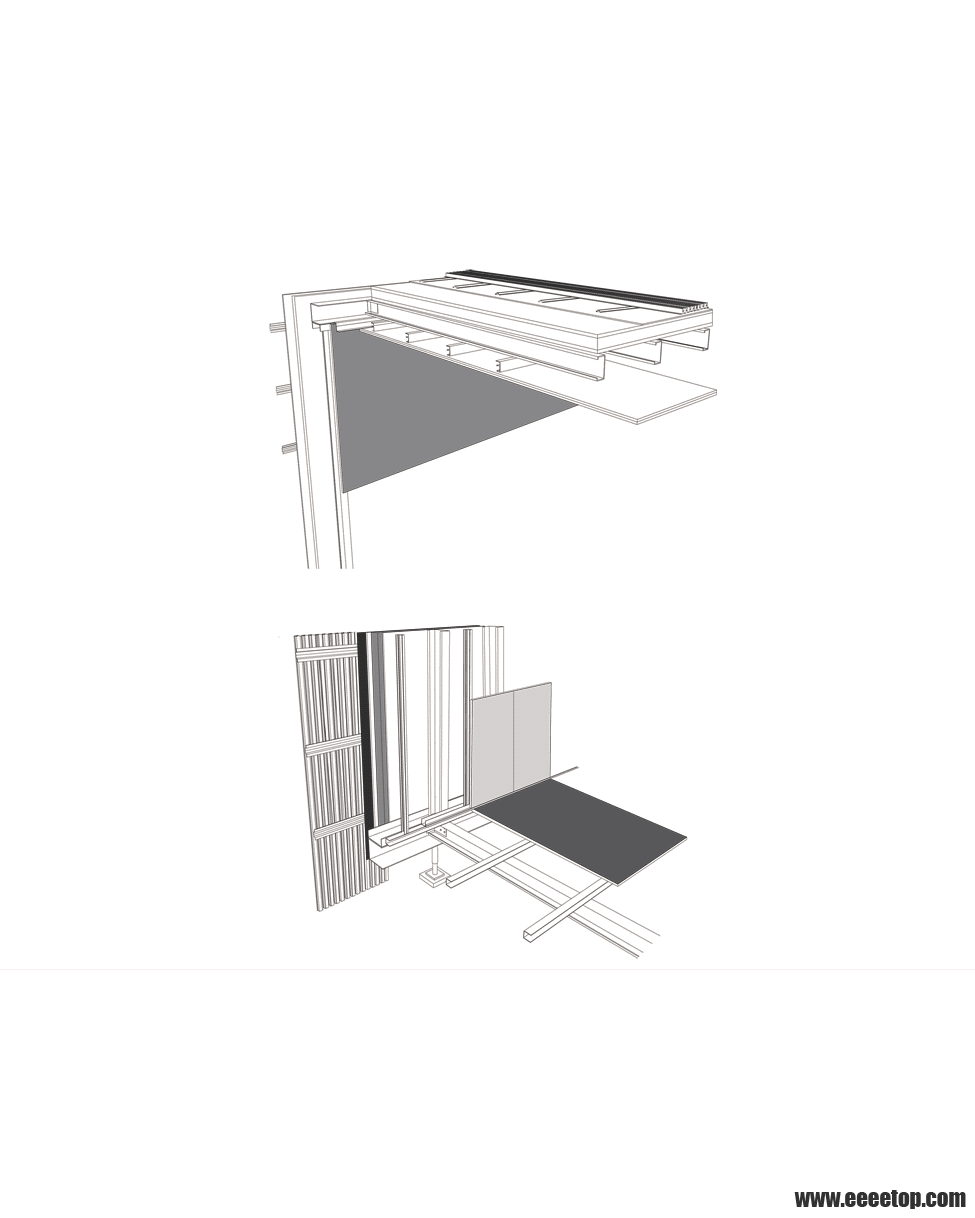

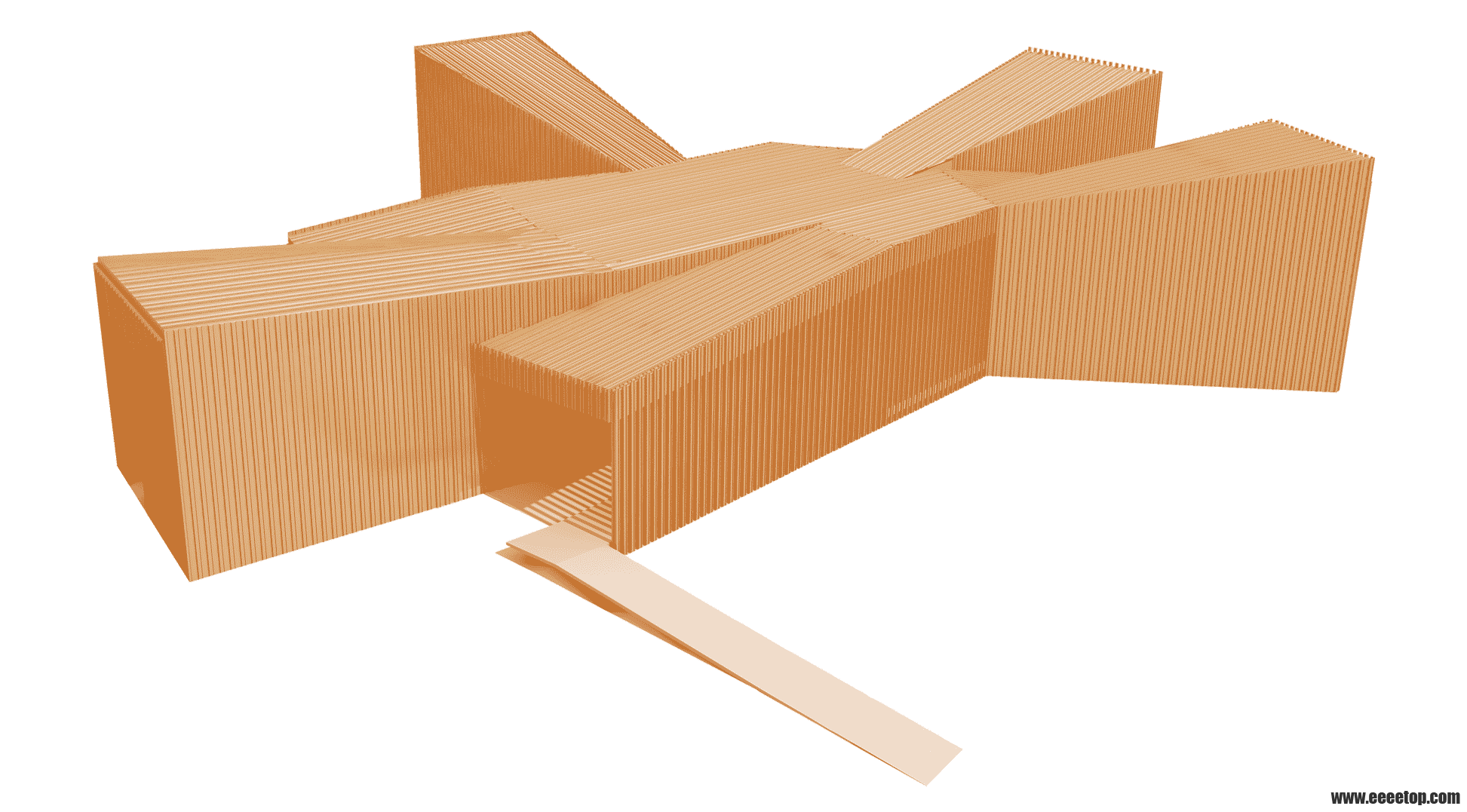

The sea shell, emblem of the pilgrims, inspired the form of this building creating a reunion space at its core which branches out into several individual intimate spaces for meditation. The Shelter’s identity is made mainly from ins and outs created by the Pladour boards which structure and protect it. These boards with equal gaps cast stripes of light agains the interior walls producing the required transcendent atmosphere.
In order to glorify this stage of the journey, the entry is made on an individual passage walk. Inside, a feet washing bowl recreates the Christian beliefs that after a long journey there should be an time to relax. Beyond the entrance a large communal space for the chapel and on the wall opposite is a Christian cross shape whole where light comes through.











评分

参与人数 1e币 +1 收起 理由
hansomeee + 1 发帖莫偷懒,切勿做简单复制粘贴。

查看全部评分

 楼主 | 管理员|深圳老梁 发表于 2014-3-21 08:16:13 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
VÂNIA COELHO DOS SANTOS建筑作品集PDF下载,内容更完整。

vania coelho santos portfolio.pdf

9.78 MB, 下载积分: e币 -2  e币充值 VIP免e币

活字24(48)页

 楼主 | 管理员|深圳老梁 发表于 2014-3-20 22:47:01 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币

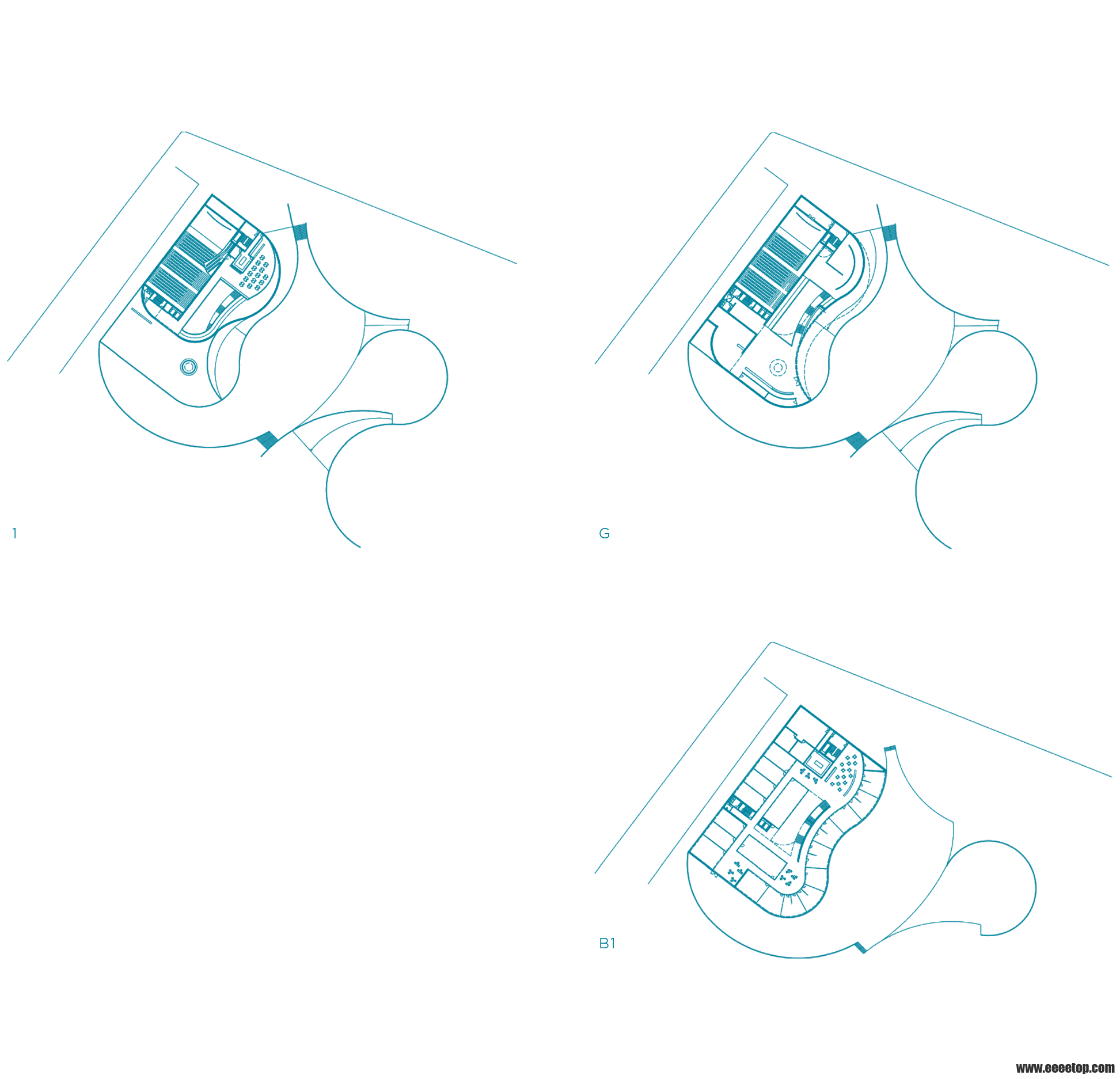

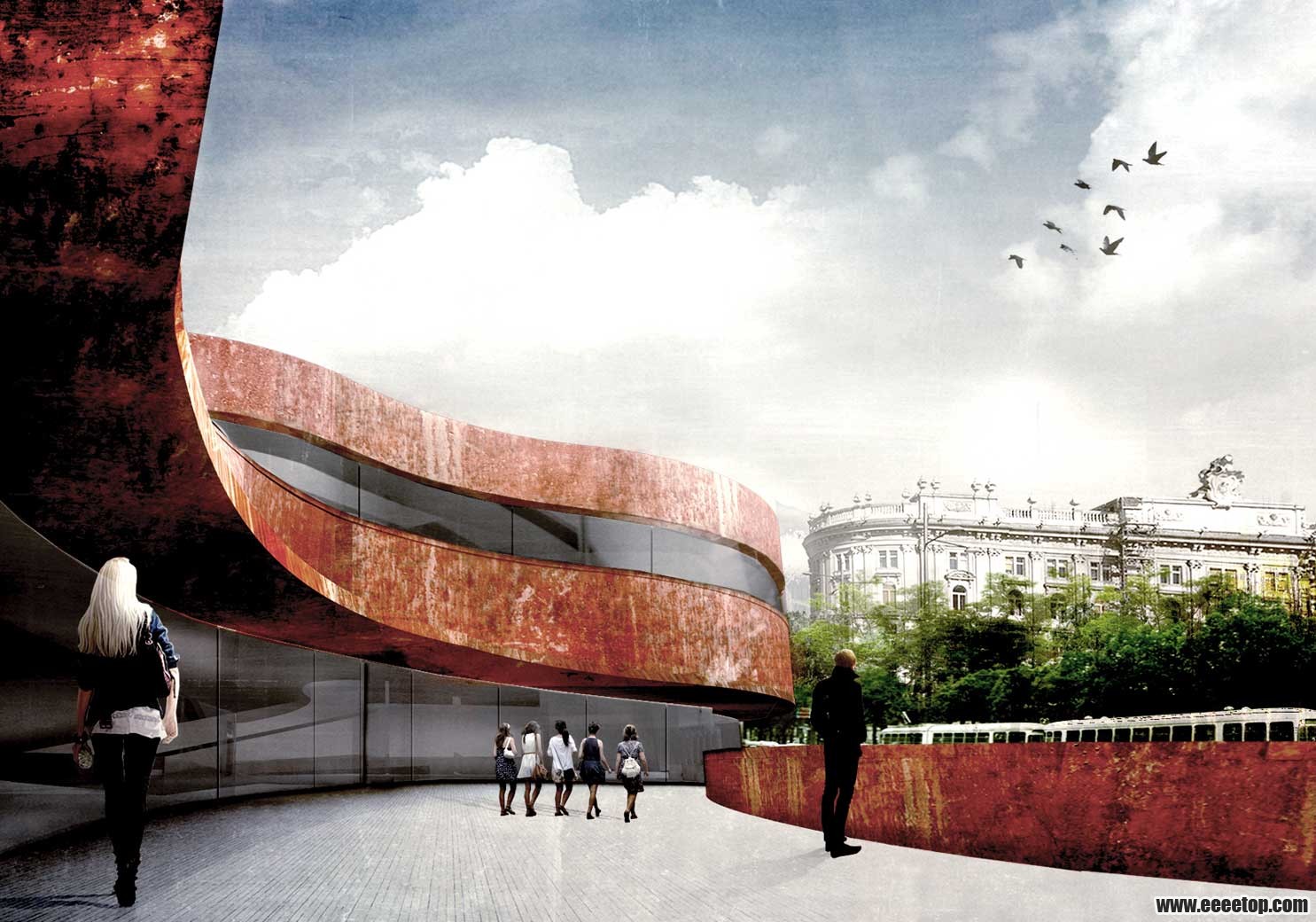

Vienna House of Music
维也纳音乐之家

Music is intuitively recognised by any one of us. It’s a result of a manipulation of sounds and silences in delicate and meticulous sequences over a period of time, it is, by excellence one of the noblest expressions of the human culture. Rhythm, harmony, fluidity, are characteristics intrinsically connected to music and that arise thoroughly incorporated into this proposal.

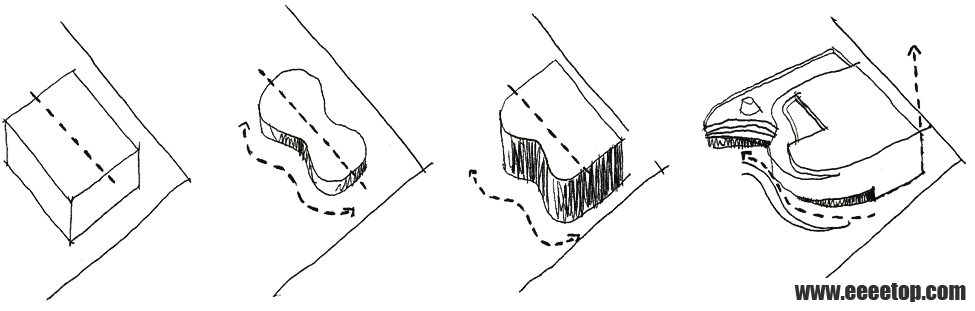

The fluidity of the spaces, the set of curvilinear shapes that deviate and / or join, the search for harmony between interior / exterior, between form and function, full and empty, denounces the primary intention of overfill the characteristics of the object - Music - to the space that houses - the house of music in Vienna. Since this is the city by excellence of classical music, this new building will be, without  no margin of doubt, a reference of relevant importance at this level.
In regard to the implementation of the building, it was tempted that the building created a dialogue with both the city as planned and orthogonal as the city’s  clear, open and natural spaces – the garden.

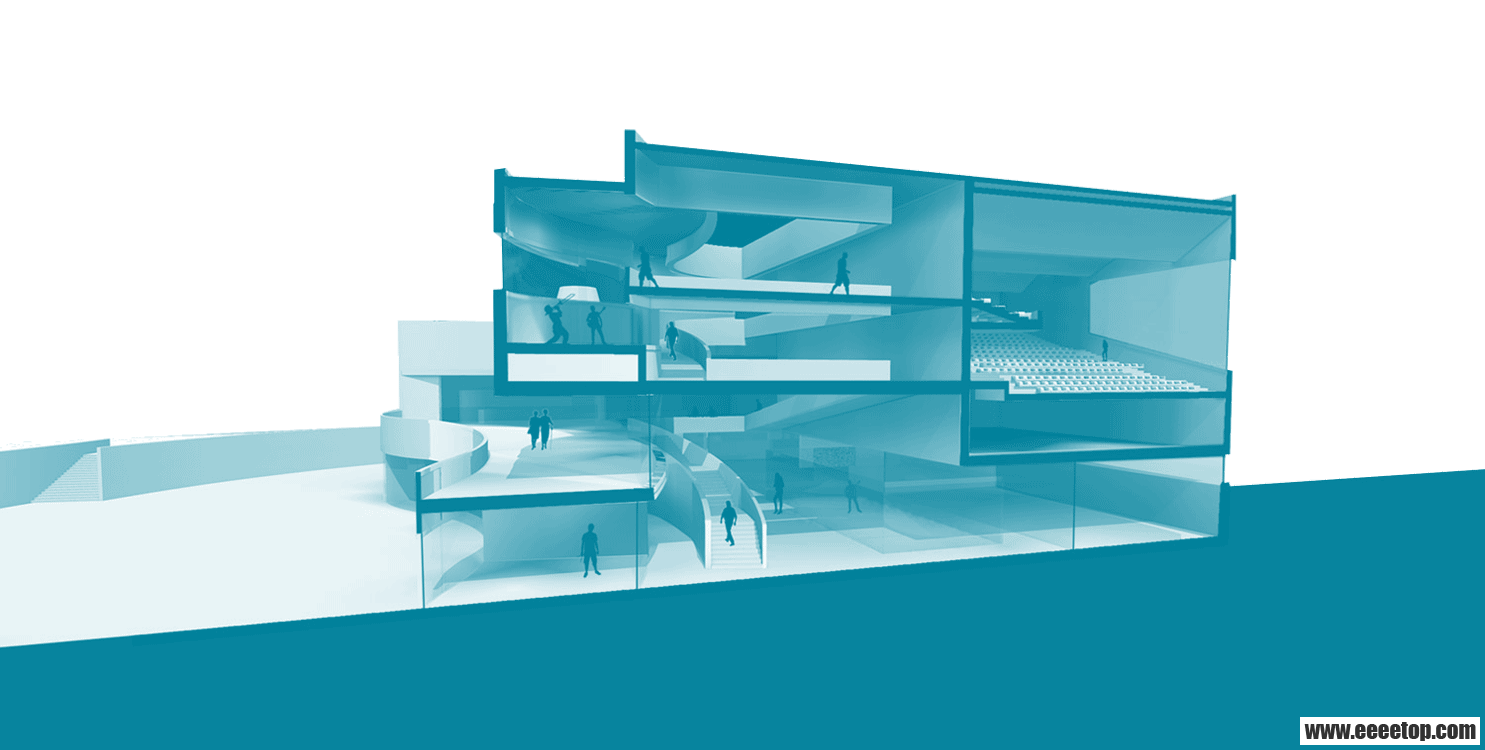

The interior is rich in mezzanines sets and that organize and streamline, always aiming towards the creations of fluid spaces, in constant dialogue with each other. The walls and ramps star in a delicate game of stress and strain space, emerging as a metaphorical adaptation of the violin bows to the walls of the building.









 楼主 | 管理员|深圳老梁 发表于 2014-3-20 22:47:02 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币

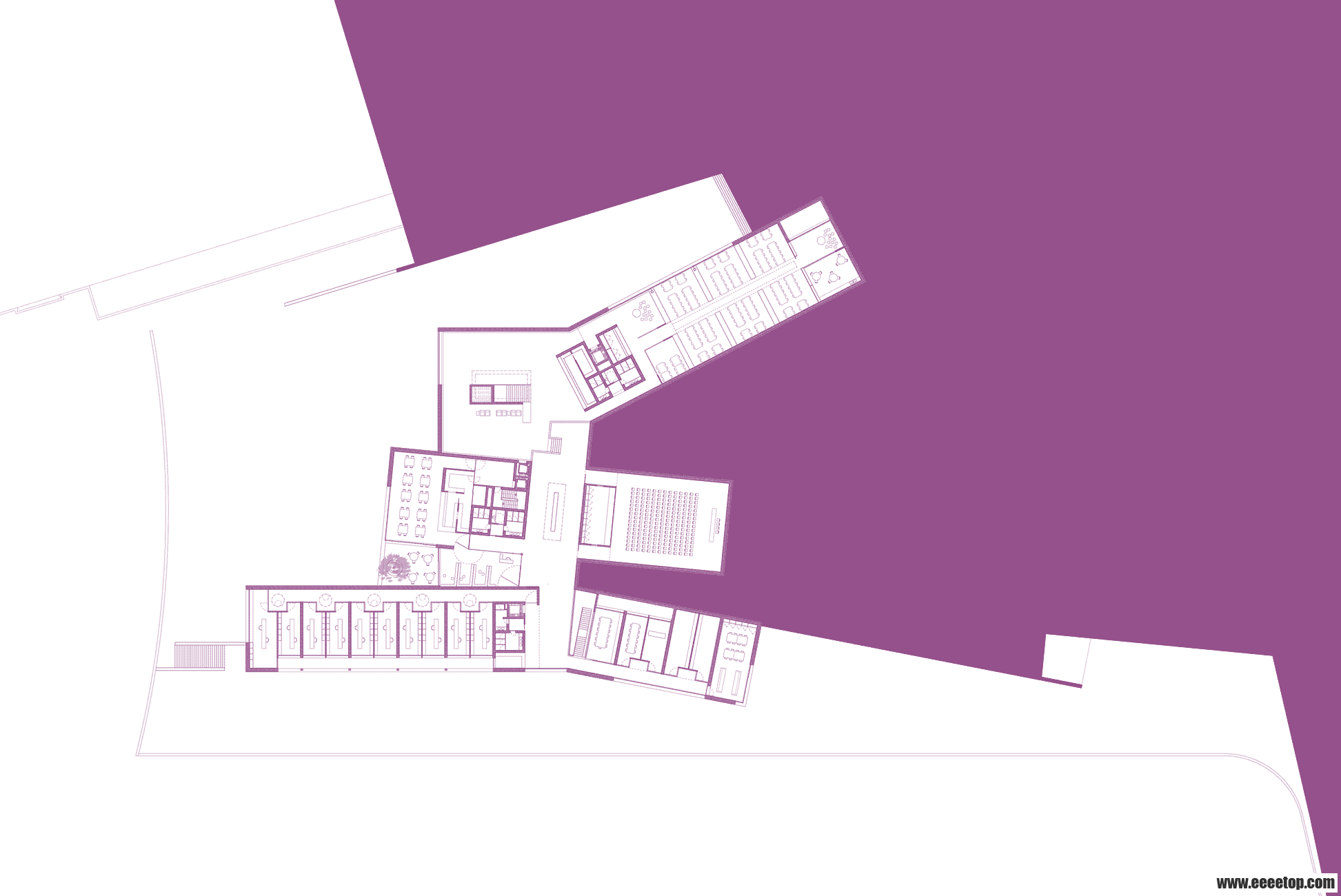

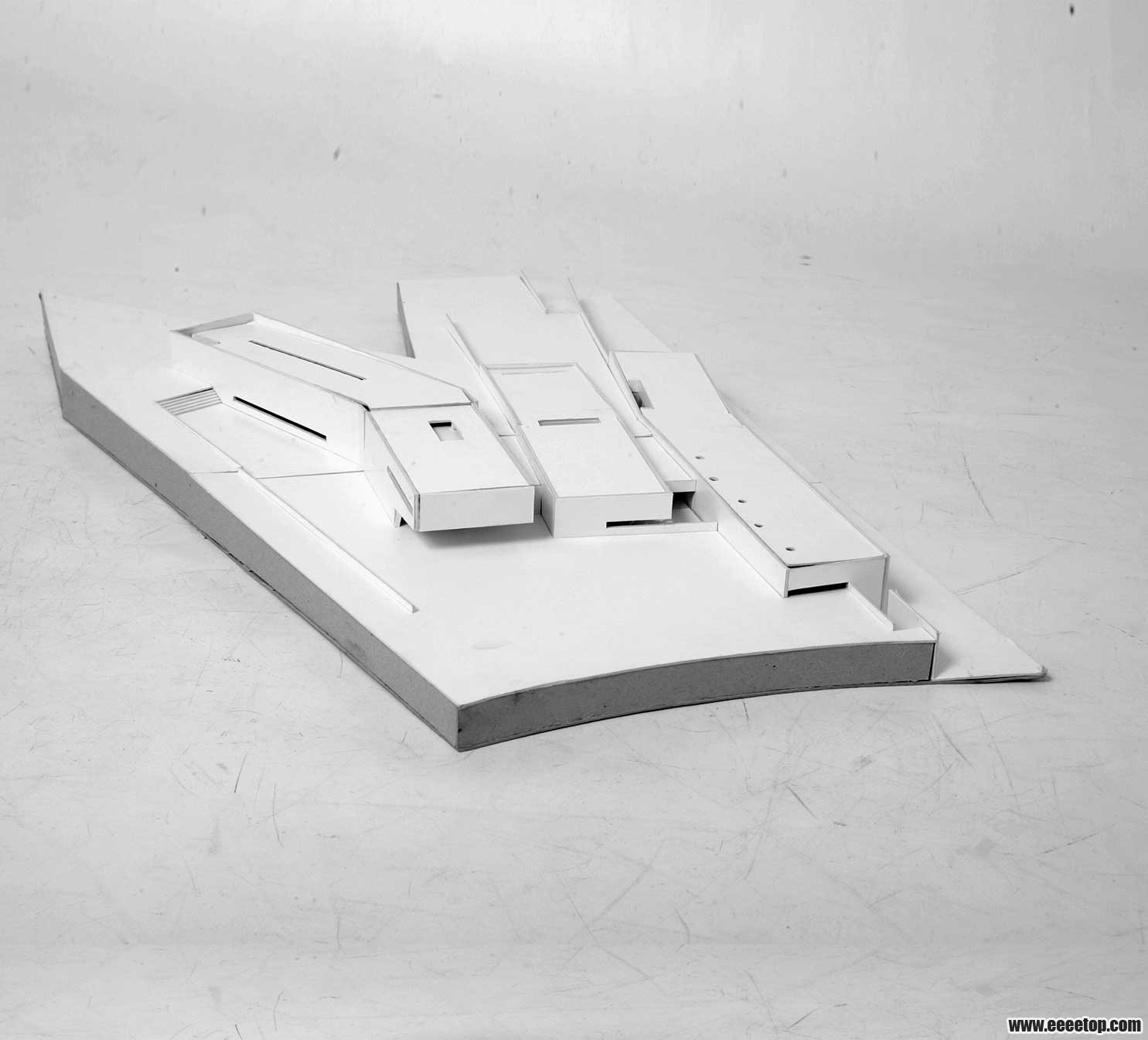

Vila Nova de Gaia Public Library
阿尔科泽卢公共图书馆

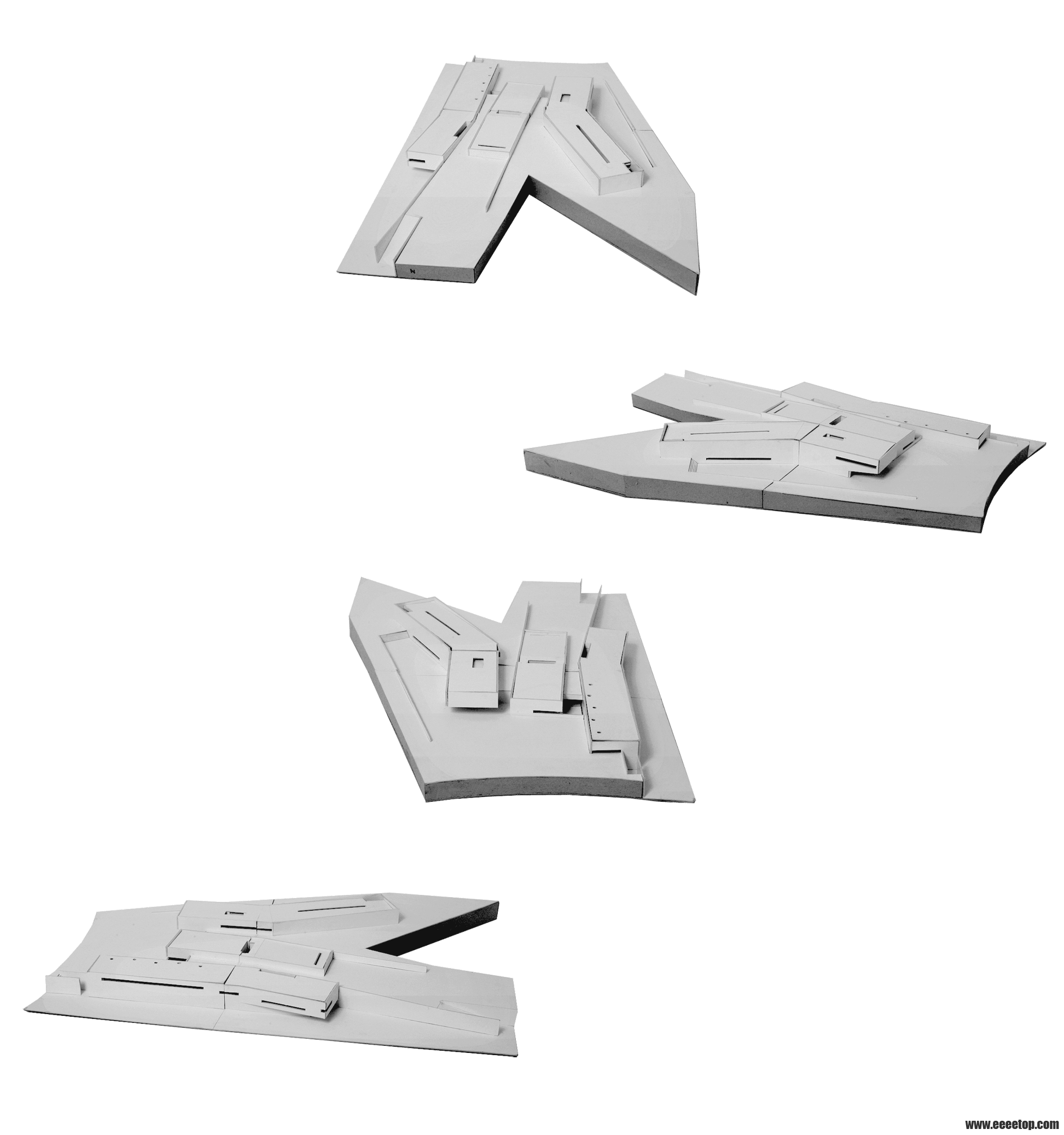

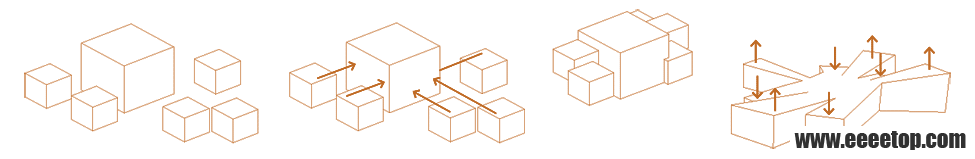

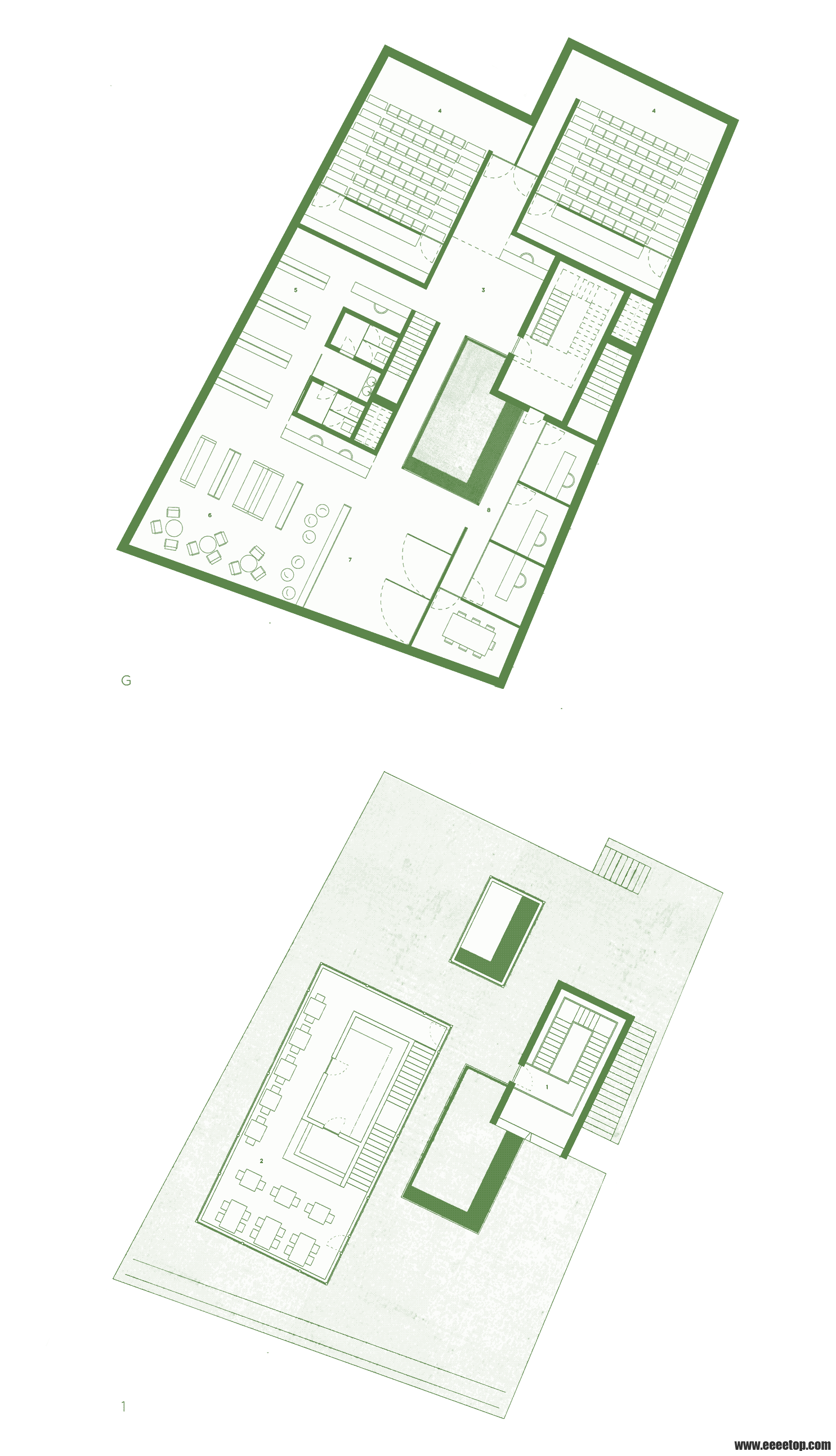

Silence / noise, communication / Insight, Light / Shadow, every moment of the project searches for a smooth adaption between the program, the project and the site. The plan of this library was develop in order to generate a personal interpretation of the program, that overflows to the created form. The building conquests the land through three expansive gestures. Every gesture / volume arises from the interpretation and organisation of the program.
Act 1: Silence
In the first volume are located the reading rooms. The aim is to create comfortable and bright spaces propitious to introspection and reading.
Act 2: Noise and Interaction
In the second volume, the spaces seek for communication, interaction and socialisation, being located here the cafeteria, library and multipurpose room.
Act 3: Coordination
In the third volume are the spaces associated with the operation and administration of the library.

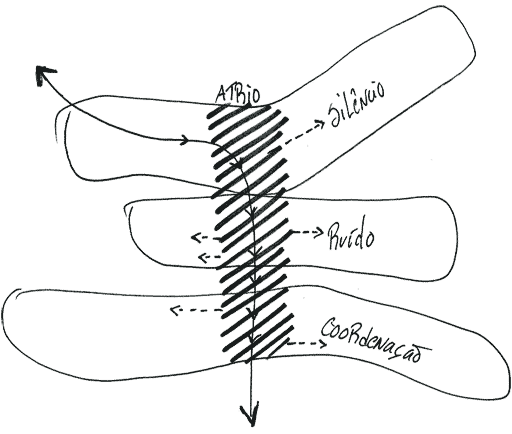

The Atrium, a functional distribution element, makes the connection between the three volumes, acquiring different characteristics in each volume.









 楼主 | 管理员|深圳老梁 发表于 2014-3-20 22:47:03 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币

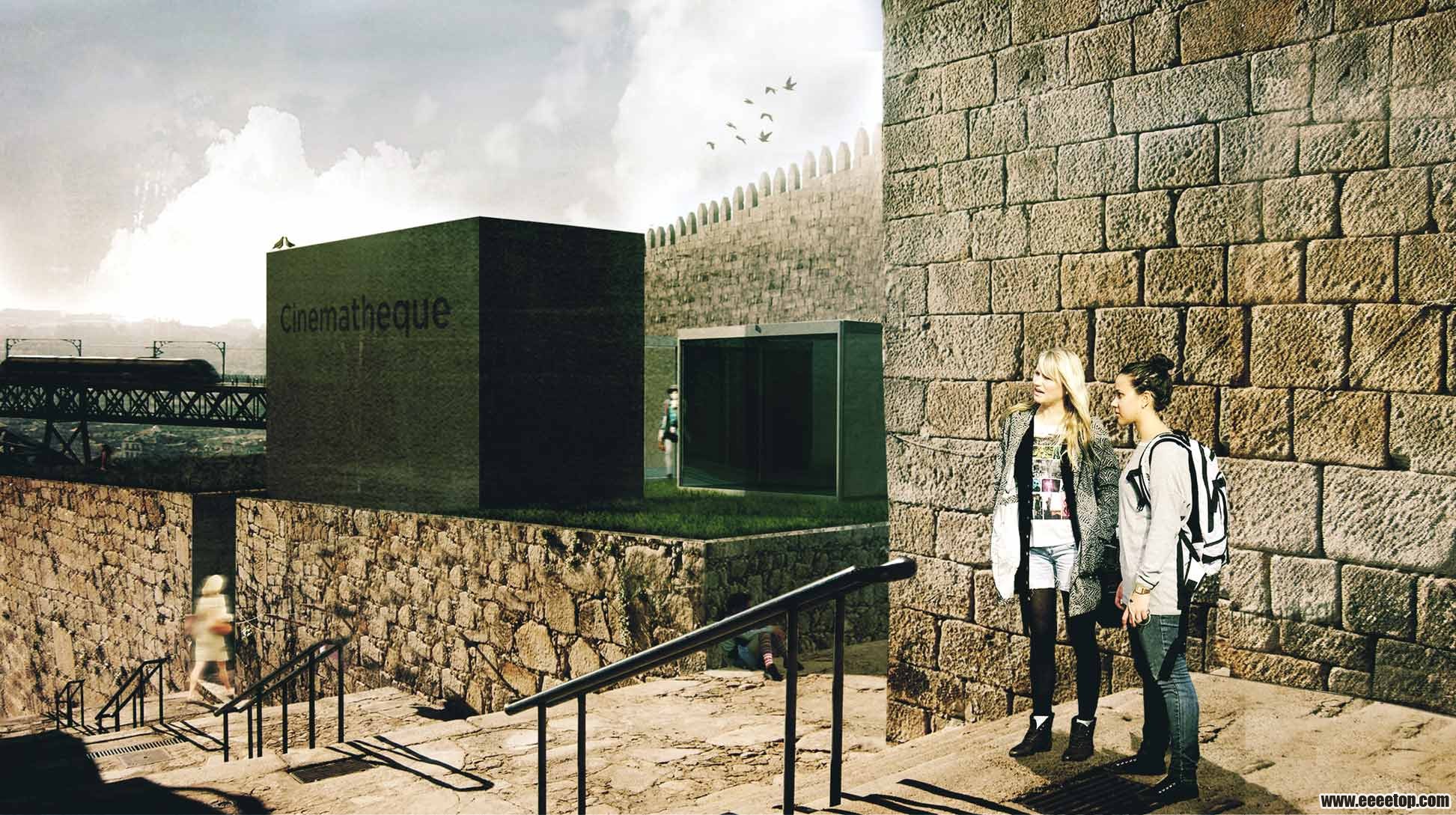

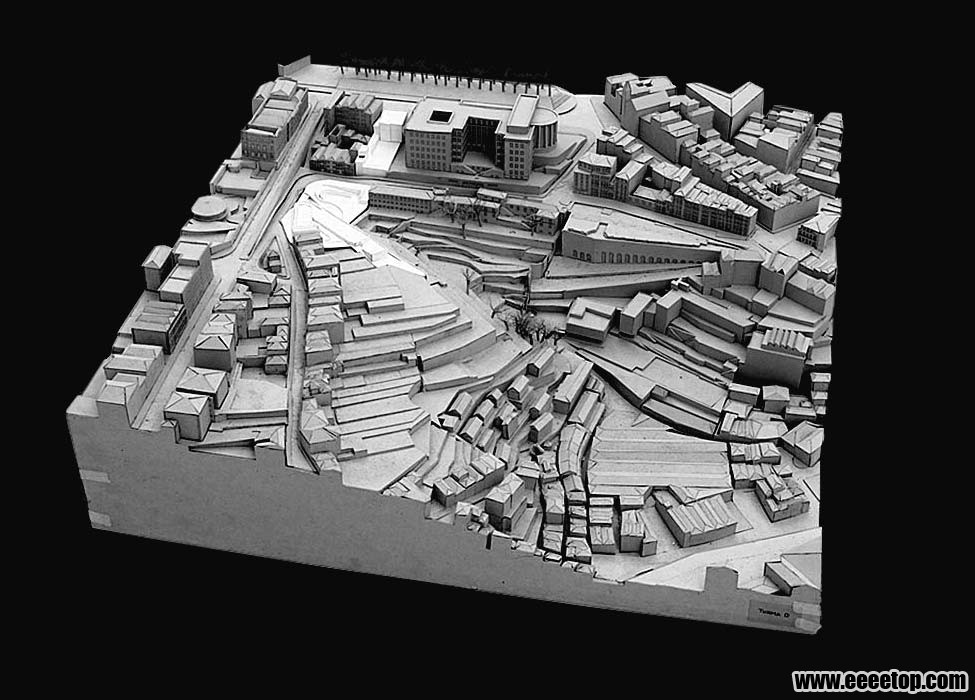

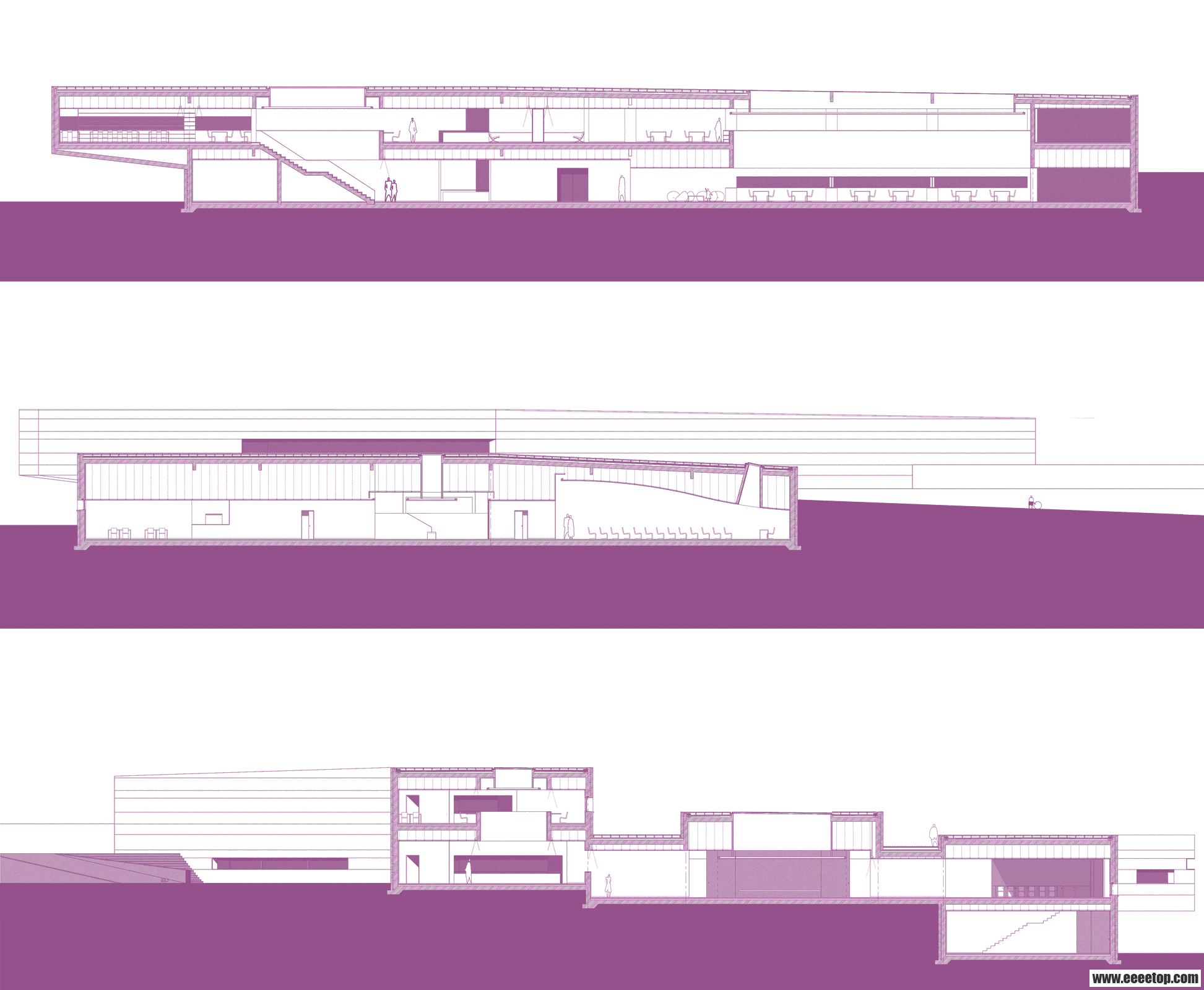

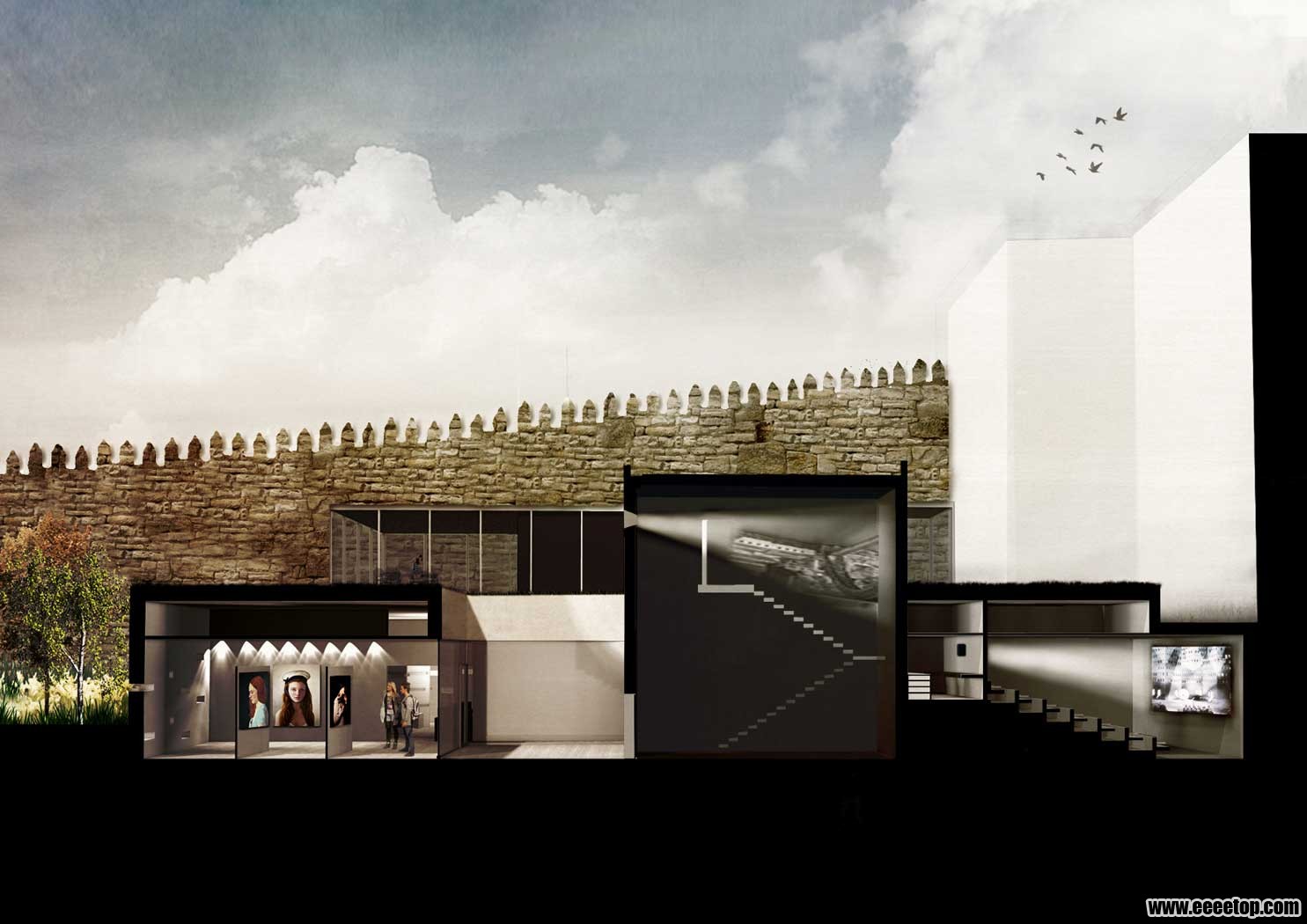

Cinematheque
电影院

This competition is based on a particularity: the challenge was presented and the teams only had 48h to present a solution. The site represents the typical topography of Oporto downhill, extending to the river and providing a magnificent view of the bridge Luís I and the Fernandina historic Wall, - remarkable icons that conceives to the location an emblematic feeling.
The proposal should develop an intense relationship with the sumptuous location, recognising the local environment and toasting to the city a space for the movie lovers.
How could this relationship be developed? The concept was base on the reinterpretation of the Obscure Camara logic (the principal that led to the first camera): the whole building revolves around the idea of transition to a new atmosphere of introspection, silence and isolation as if it were a blackroom and Oporto’s landscape is captured through a pinhole camera, projecting it in the wall.





 楼主 | 管理员|深圳老梁 发表于 2014-3-20 22:47:04 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币

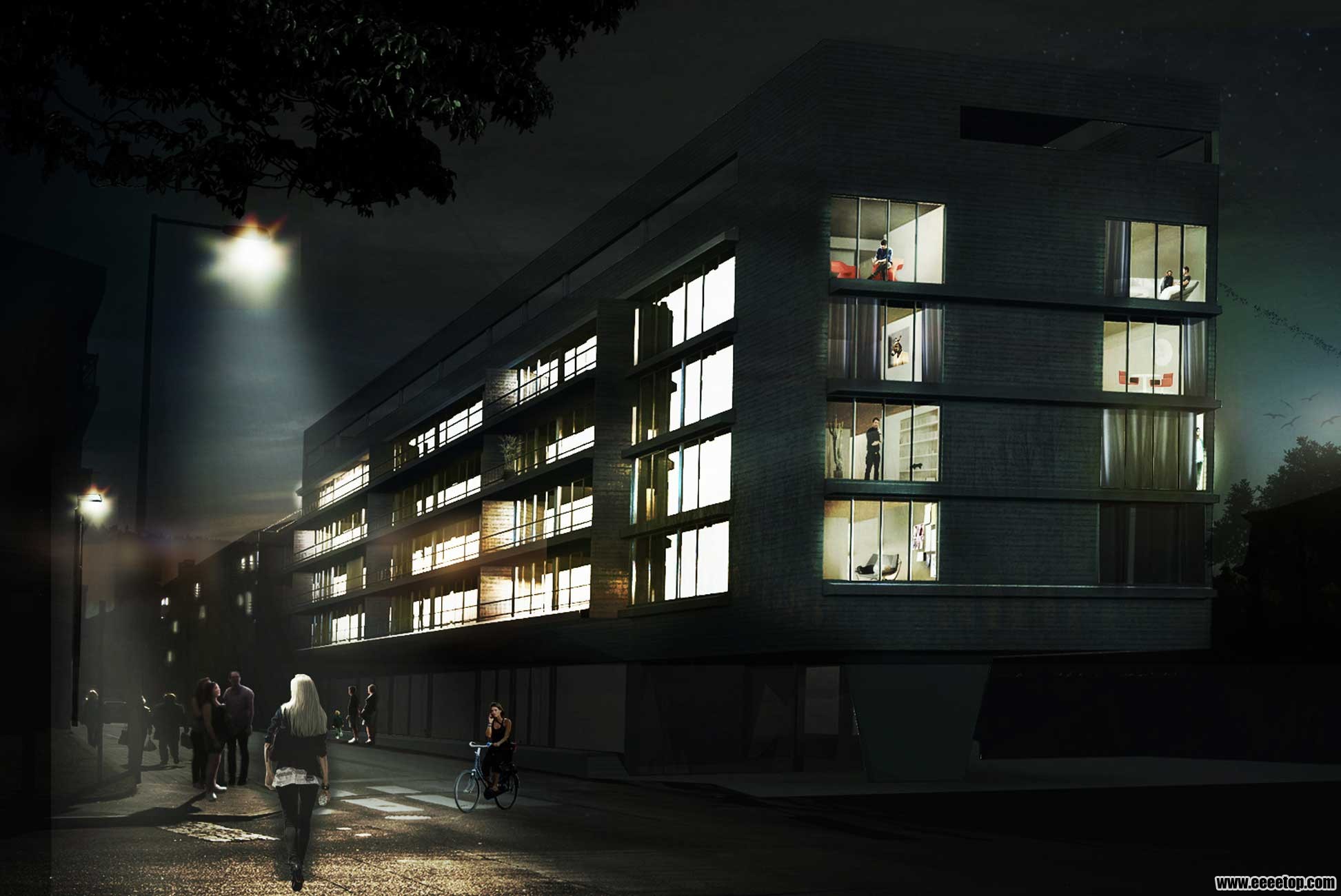

Collective Housing
集合住宅

This work was developed in three phases / moments, each one with specific purposes.
Moment 1: The City
The site to intervene is located in a residential area near to a strong centrality - the Boavista Rotunda. It’s dimensions demanded the designing of a new street allowed the access to the new blocks. All the areas for commerce and offices activity are located on streets with higher traffic, and with connection to important areas of the city - the street of Graciosa and Street of Quinta Amarela.
Moment 2: The Building

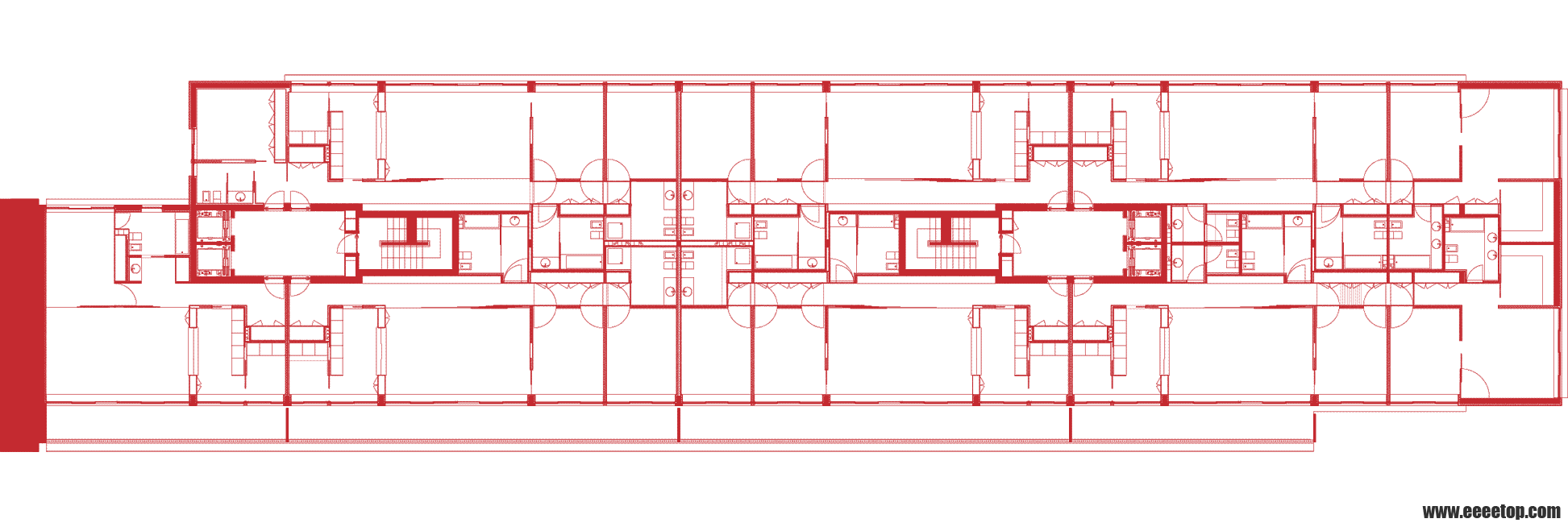

The second moment was the definition of a housing block. The direct connection, of the new block, with a preexistent building, created the necessity of develop a continuity between the two facades. The new house building result from the intersection of two bodies: one that gives continuity to the preexistent building and defines the balconies apartments, and, another one - the principal -, which contains de habitations.

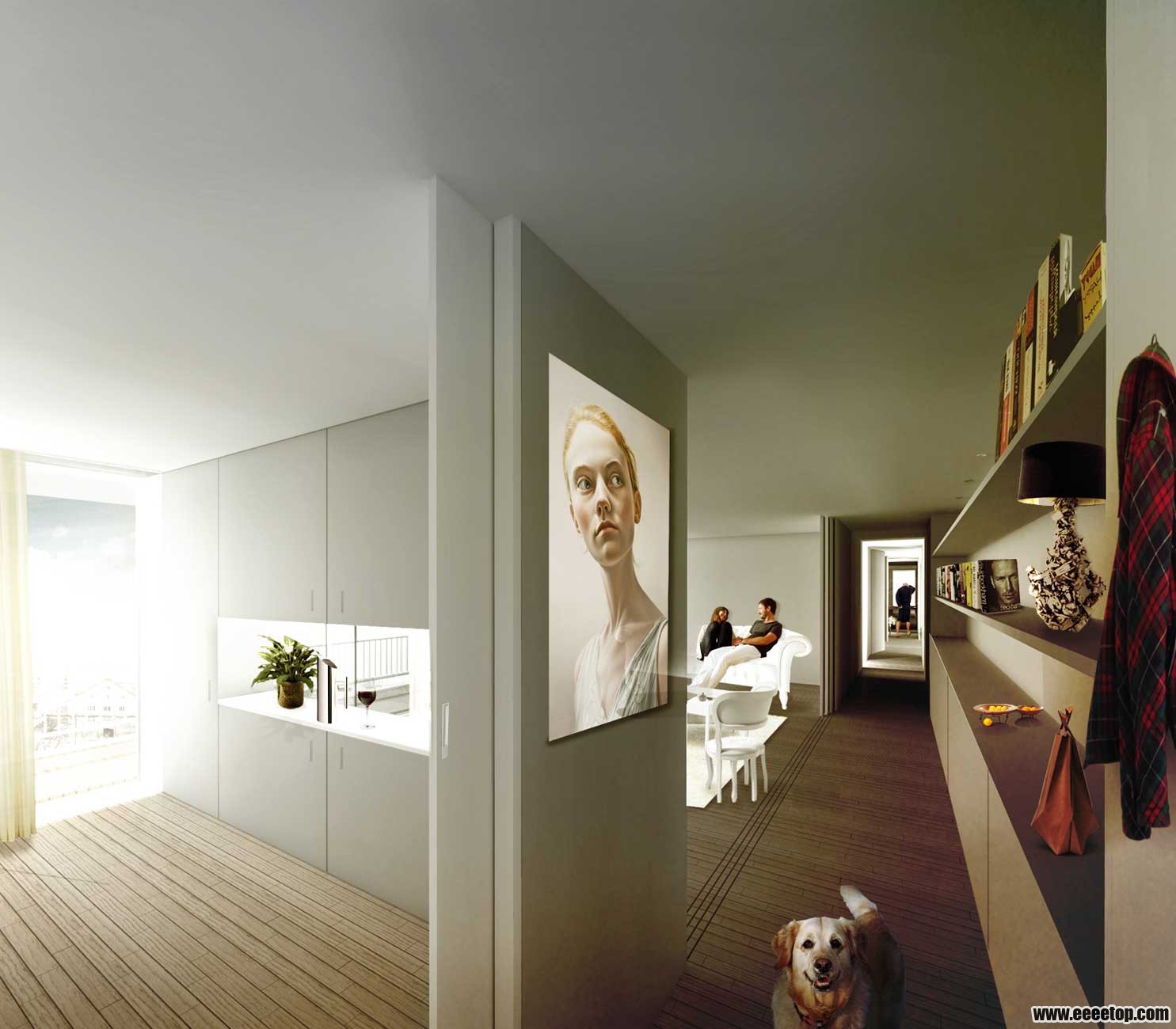

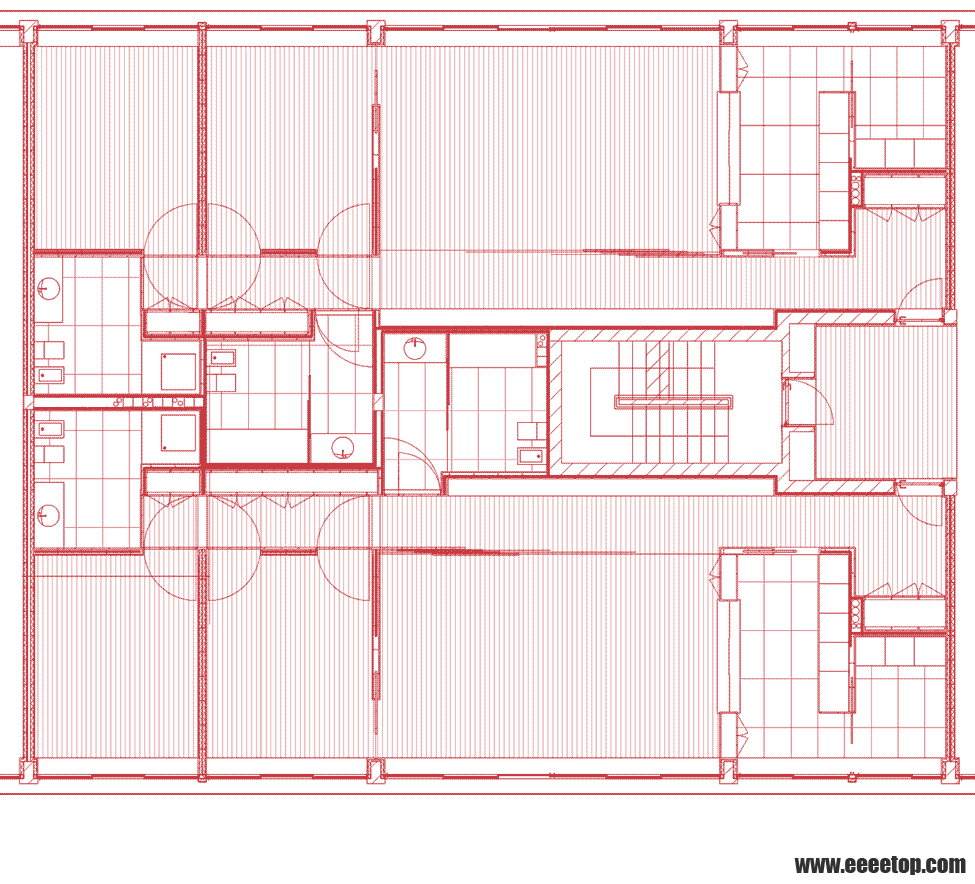

Moment 3: The Flat
The habitation scheme allowed the development of spaces that can be diluted, forming new spaces. The corridor is the element that distributes the different areas of the house and it can be extended slowly with the opening of the spaces that are connected to it.





 楼主 | 管理员|深圳老梁 发表于 2014-3-20 22:47:05 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币

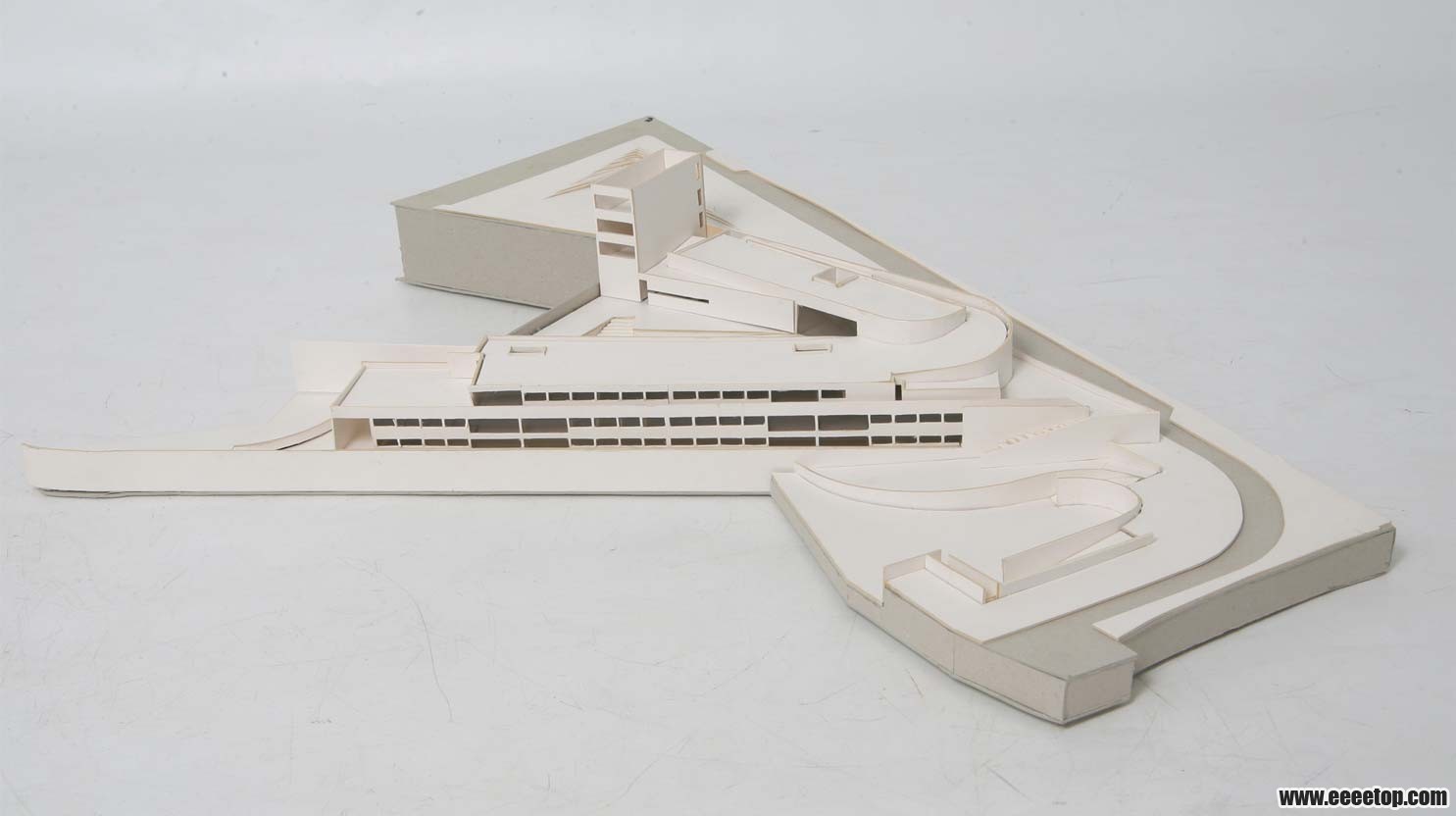

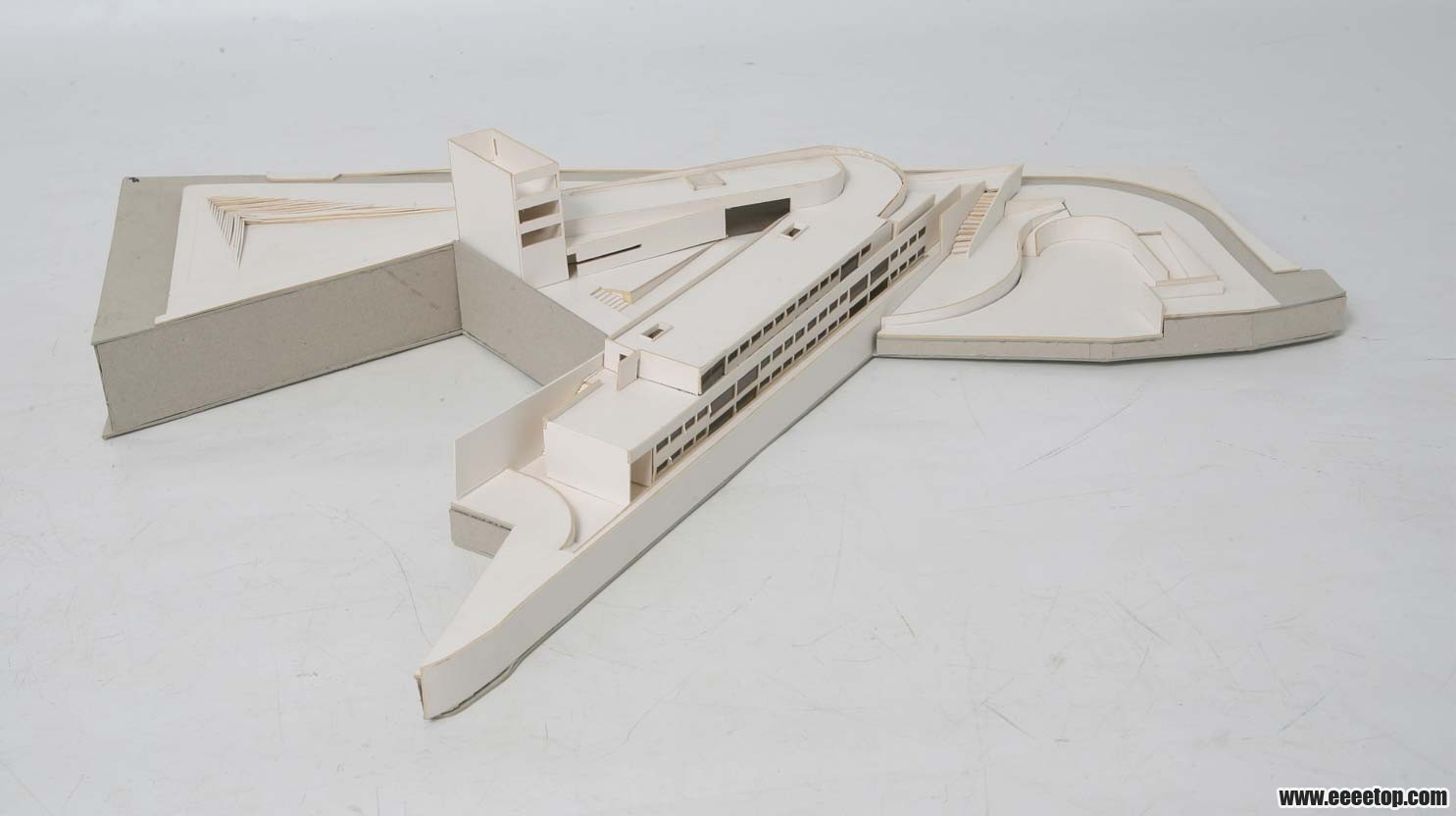

Student Housing
学生公寓

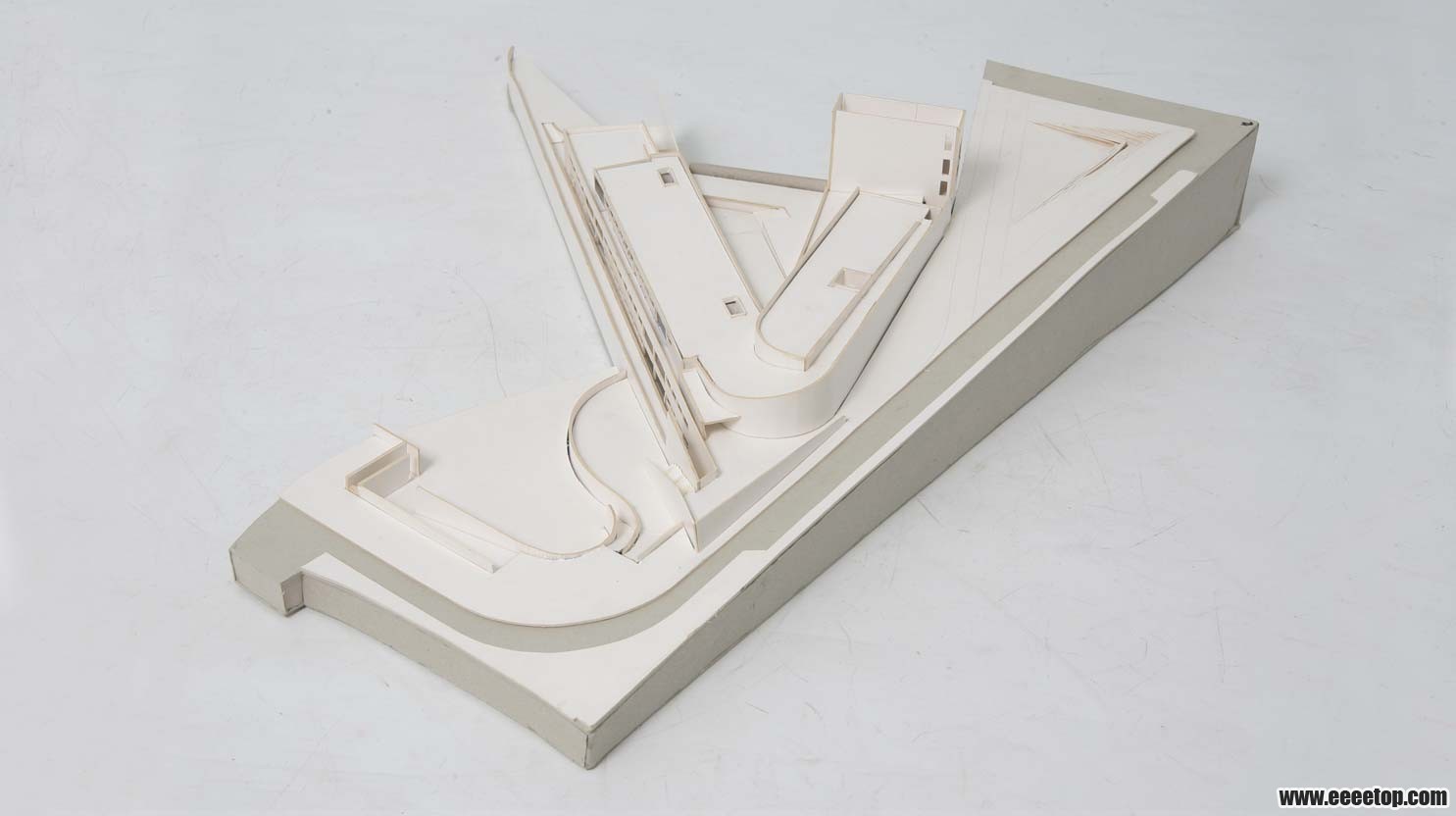

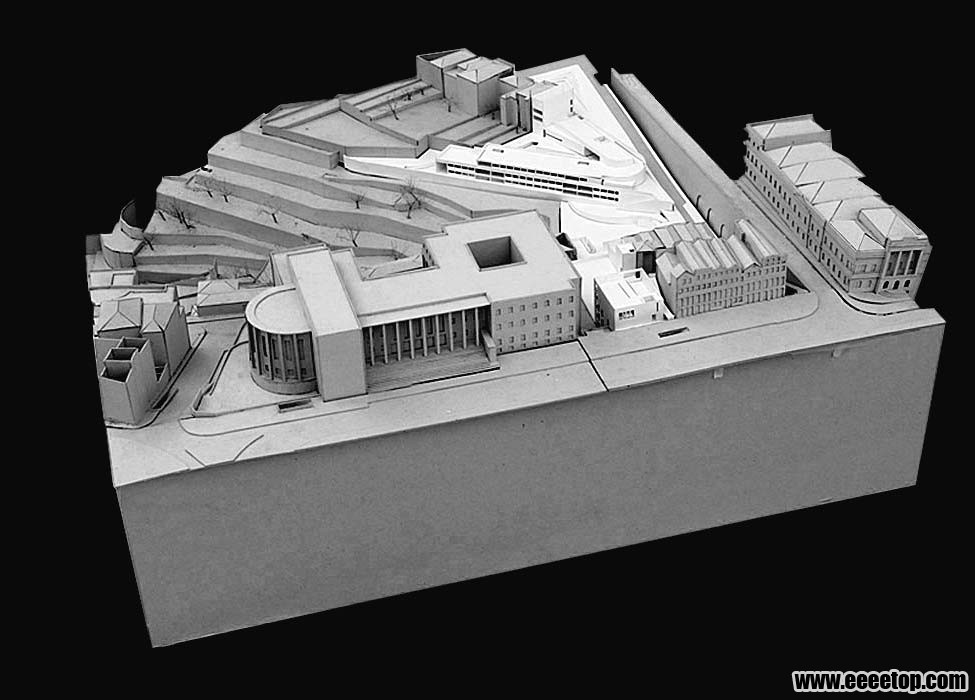

The difficulties of this project resided in the irregularity of the site. The project should respond and resolve the dialog between the surrounding XIX century architecture and the garden of ‘Virtudes’. Taking these constraints into consideration, the project goal was to design a continuity between the new building and their surrounding, without compromising their identity.
It was assumed that the garden would be public and without limited access, like the others city gardens of Oporto. Thus, the location of the resident was defined to be in the two highest platforms of the site. Beginning with the creation of a dialogue with the pre-existing buildings the new building starts in a vertical motion, for then become a large horizontal arm that subjugate the site.
The foyer - the element that articulates all the others spaces -is the joint element and the key image of all project; the connection point of the two main parts with different directions and distinct heights.










拓城校尉|桥-Arc 发表于 2014-3-20 23:50:10 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
建筑都很有感觉···外国人的手法很舒服·············
拓乡士官|木又寸 发表于 2014-3-21 08:04:21 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
超级赞!!!
拓乡士官|Nirvanalolp 发表于 2014-3-21 08:46:12 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
第一个来学习。感谢梁叔。
拓城校尉|zhenaihuai 发表于 2014-3-21 09:35:39 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
外国建筑学生个个都是PS高手?
浅尝辄问是一种耻辱
拓城校尉|圣西罗小虾米 发表于 2014-3-21 11:12:07 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
样样都会啊,感谢分享^^……
点 点 滴 滴 ~~
拓邦元帅|偷影者 发表于 2014-3-21 11:32:21 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
对结构的把握很精准啊
拓都将军|liu2132119 发表于 2014-3-21 12:07:53 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
一般吧  属于“保守派”的
拓城校尉|马甲不能少 发表于 2014-3-21 12:18:00 | 显示全部楼层
发帖得20e币  e币充值  开通VIP会员  快速免费获取e币
谢谢分享。
